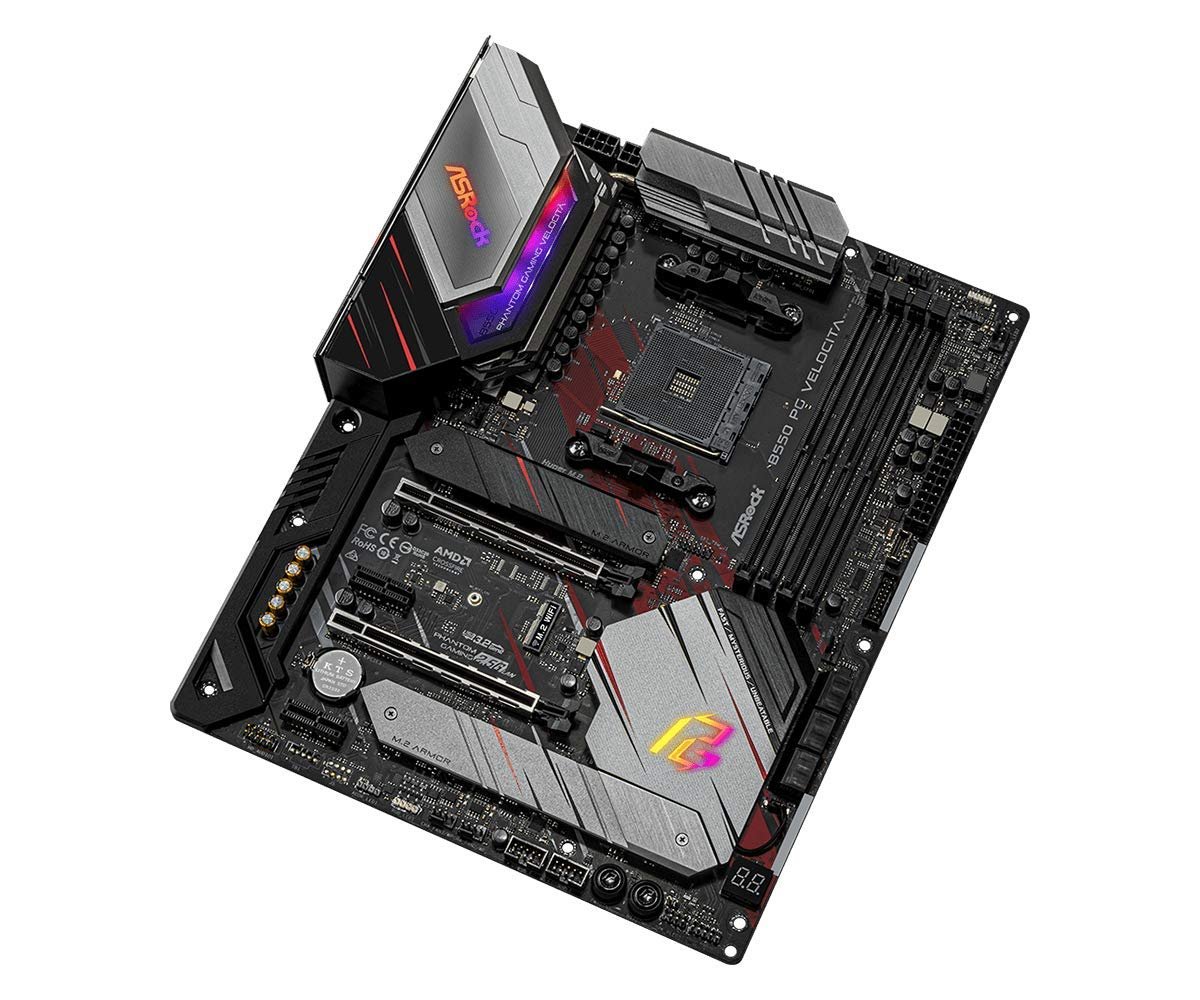

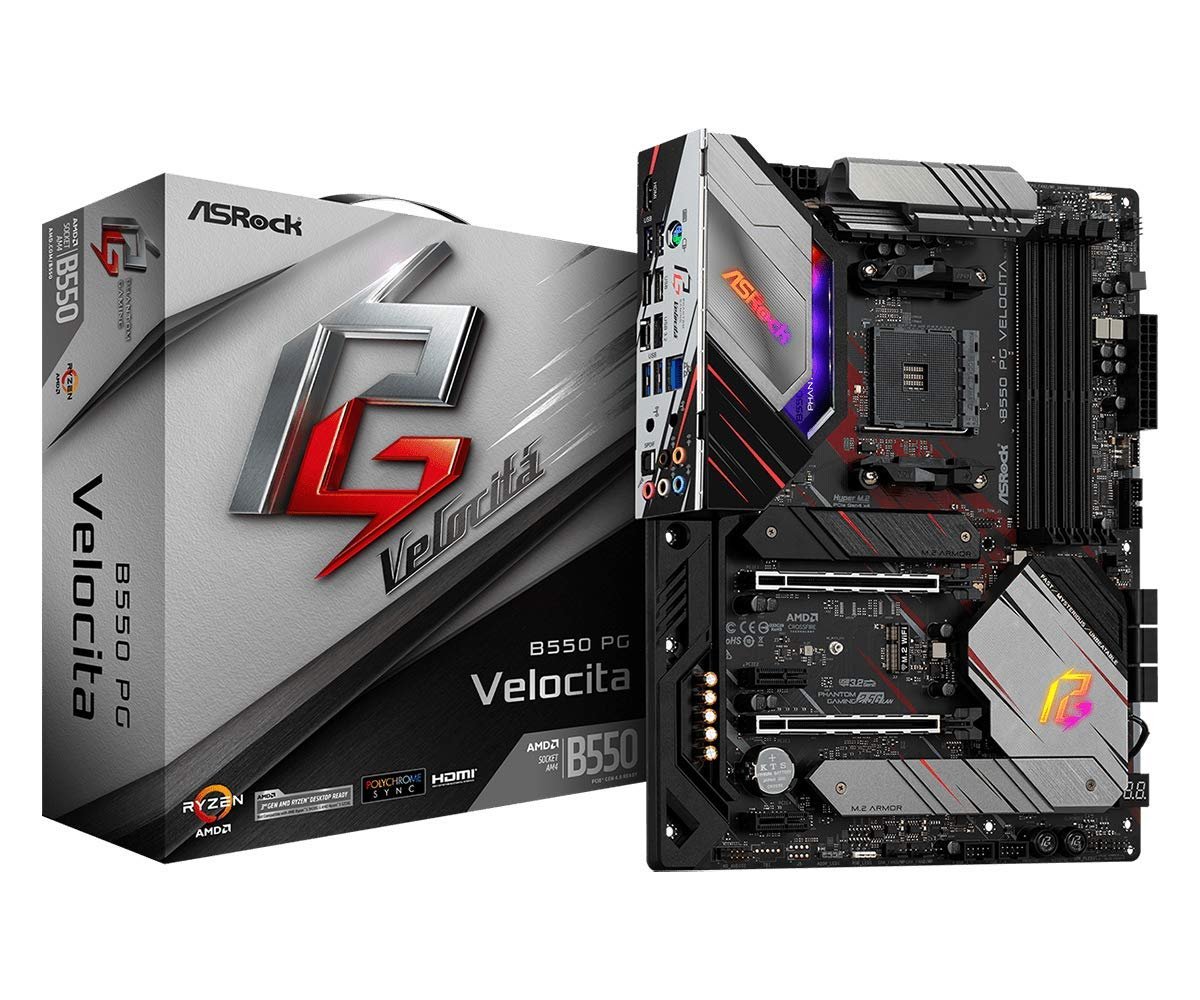

Available Now ASRock B550 PG Velocita AM4 ATX Motherboard (AMD Socket AM4/3rd Gen Ryzen Series CPU/Max 128GB DDR4 4733MHz Memory)

Supports 3rd Gen AMD AM4 Ryzen / Future AMD Ryzen Processors 14 Power Phase Design, Digi Power, Dr. MOS Supports DDR4 4733+ (OC) 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key E for WiFi Graphics Output Options: HDMI AMD CrossFireX. 7.1 CH HD Audio (Realtek ALC1220 Audio Codec), Nahimic Audio 6 SATA3, 1 Hyper M.2 (PCIe Gen4 x4), 1 M.2 (PCIe Gen3 x2 & SATA3) 3 USB 3.2 Gen2 (Rear Type A+C, Front Type-C), 4 USB 3.2 Gen1 (2 Front, 2 Rear) Phantom Gaming 2.5G LAN Specification : Gaming Armor Power ?’ Hi-Density Power Connectors (24 pin, 8 pin and 4 pin) Memory ?’ 15 ?«_ Gold Contact in DIMM Slots VGA Card ?’ 15 ?«_ Gold Contact in VGA PCIe Slot (PCIE1) Internet ?’ 2.5G LAN Cooling ?’ XXL Aluminum Alloy Heatsink ?’ Heat Pipe Design Audio ?’ Nahimic Audio Unique Feature ASRock USB 3.2 Gen2 ?’ ASRock Front Panel USB 3.2 Gen2 Type-C Header (10 Gb/s) ?’ ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s) ?’ ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s) ASRock Super Alloy ?’ XXL Aluminum Alloy Heatsink ?’ Premium 60A Power Choke ?’ 50A Dr.MOS ?’ Premium Memory Alloy Choke (Reduces 70% core loss compared to iron powder choke) ?’ Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors) ?’ I/O Armor ?’ Matte Black PCB ?’ High Density Glass Fabric PCB ?’ 2oz Copper PCB ASRock Phantom Gaming 2.5G LAN ASRock Steel Slot Gen4 ASRock Full Coverage M.2 Heatsink ASRock Hyper M.2 (PCIe Gen4x4) ASRock Ultra USB Power ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop CPU ?’ Supports 3rd Gen AMD AM4 Ryzen / future AMD Ryzen Processors* ?’ Digi Power design ?’ 14 Power Phase design *Not compatible with AMD Ryzen 5 3400G and Ryzen 3 3200G. Chipset ?’ AMD B550 Memory ?’ Dual Channel DDR4 Memory Technology ?’ 4 x DDR4 DIMM Slots ?’ AMD Ryzen series CPUs (Matisse) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* ?’ AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* ?’ Max. capacity of system memory: 128GB** ?’ Supports Extreme Memory Profile (XMP) memory modules ?’ 15 ?«_ Gold Contact in DIMM Slots*
