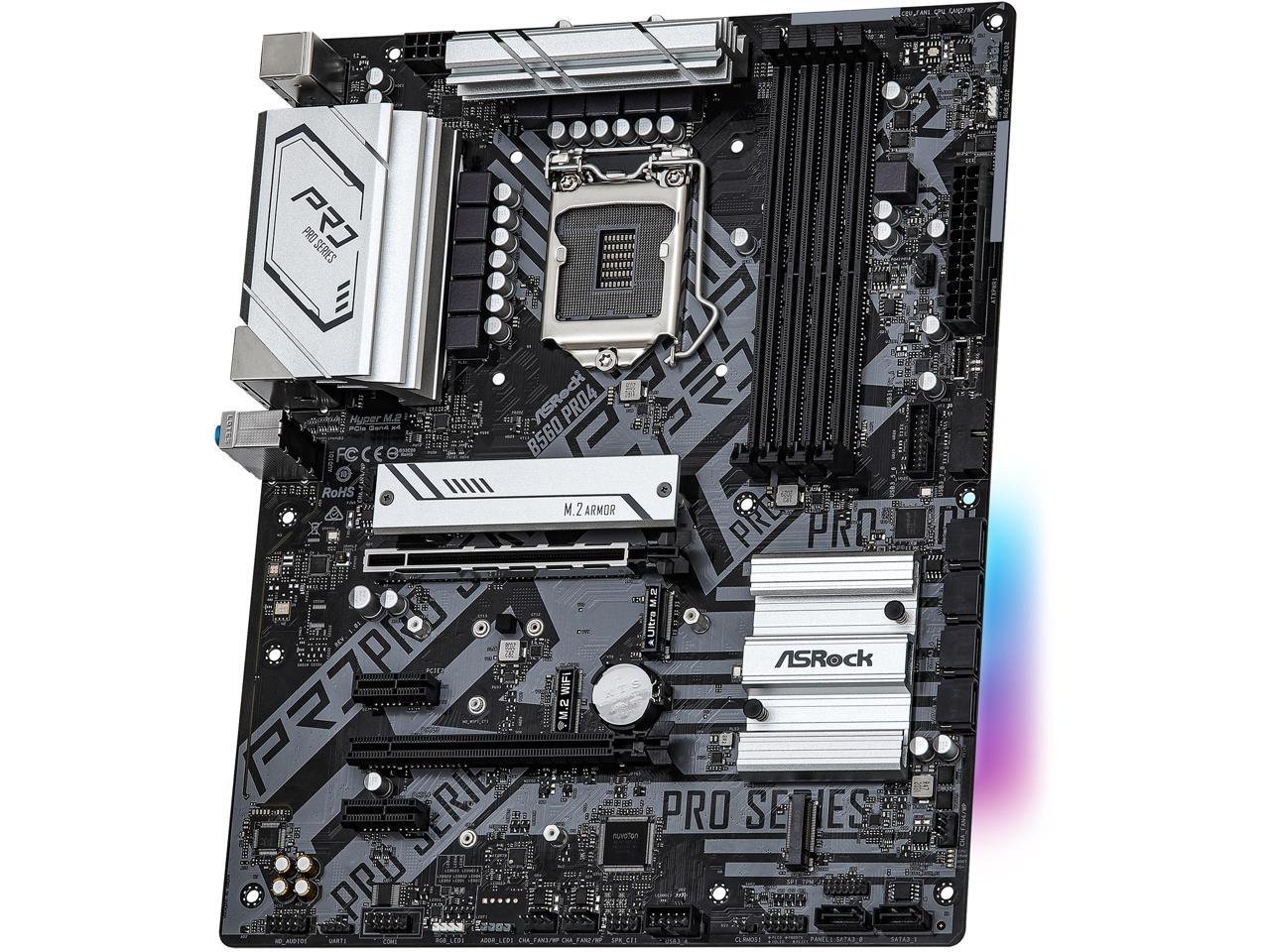

Available Now ASRock B560 Pro4 LGA 1200 Intel B560 ATX Intel Motherboard

Intel B560 Supports 10th Gen Intel Core Processors Supports 11th Gen Intel Core Processors 11th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 4800+(OC)* 10th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 4600+(OC)* * 11th Gen Intel Core (i9/i7/i5) support DDR4 up to 2933; Core (i3), Pentium and Celeron support DDR4 up to 2666. * 10th Gen Intel Core (i9/i7) support DDR4 up to 2933; Core (i5/i3), Pentium and Celeron support DDR4 up to 2666. * Please refer to Memory Support List on ASRock ?ªs website for more information. (http://www.asrock.com/) Specification : Brand ASRock Model B560 Pro4 Supported CPU CPU Socket Type LGA 1200 CPU Type Supports 10th Gen Intel Core Processors Supports 11th Gen Intel Core Processors Chipsets Chipset Intel B560 Memory Number of Memory Slots 4 ?Œ ?‘288pin Memory Standard 11th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 4800+(OC)* 10th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 4600+(OC)* * 11th Gen Intel Core (i9/i7/i5) support DDR4 up to 2933; Core (i3), Pentium and Celeron support DDR4 up to 2666. * 10th Gen Intel Core (i9/i7) support DDR4 up to 2933; Core (i5/i3), Pentium and Celeron support DDR4 up to 2666. * Please refer to Memory Support List on ASRock ?ªs website for more information. (http://www.asrock.com/) Maximum Memory Supported 128GB Channel Supported Dual Channel Expansion Slots PCI Express 4.0 x16 11th Gen Intel Core Processors: 2 x PCI Express x16 Slots (PCIE1/PCIE3: single at Gen4x16 (PCIE1); dual at Gen4x16 (PCIE1) / Gen3x2 (PCIE3))* 10th Gen Intel Core Processors: 2 x PCI Express x16 Slots (PCIE1/PCIE3: single at Gen3x16 (PCIE1); dual at Gen3x16 (PCIE1) / Gen3x2 (PCIE3))* * Supports NVMe SSD as boot disks PCI Express x1 2 x PCI Express 3.0 x1 Storage Devices SATA 6Gb/s 6 x SATA 6Gb/s M.2 1 x Hyper M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (Only supported with 11th Gen Intel Core Processors)** 1 x Ultra M.2 Socket (M2_2), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s)** 1 x M.2 Socket (M2_3), supports M Key type 2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x2 (16 Gb/s)** ** Supports Intel Optane Technology (M2_2) ** Supports NVMe SSD as boot disks ** Supports ASRock U.2 Kit Onboard Audio Audio Chipset Realtek ALC897 Audio Channels 7.1 Channels Onboard LAN LAN Chipset Intel I219V Max LAN Speed 10/100/1000Mbps Rear Panel Ports Back I/O Ports 3 x Antenna Mounting Points 1 x PS/2 Mouse/Keyboard Port 1 x HDMI Port 1 x DisplayPort 1.4 4 x USB 3.2 Gen1 Ports (Supports ESD Protection) 2 x USB 2.0 Ports (Supports ESD Protection) 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) HD Audio Jacks: Line in / Front Speaker / Microphone Internal I/O Connectors Other Connectors 1 x COM Port Header 1 x SPI TPM Header 1 x Chassis Intrusion and Speaker Header 2 x RGB LED Headers * Support in total up to 12V/3A, 36W LED Strip 2 x Addressable LED Headers * Support in total up to 5V/3A, 15W LED Strip 1 x CPU Fan Connector (4-pin) * The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) * The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) * The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. * CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP, CHA_FAN3/WP, CHA_FAN4/WP and CHA_FAN5/WP can auto detect if 3-pin or 4-pin fan is in use. 1 x 24 pin ATX Power Connector 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) 1 x Front Panel Audio Connector 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection) 1 x Front Panel Type C USB 3.2 Gen1 Header (Supports ESD Protection) Physical Spec Form Factor ATX Dimensions (W x L) 12.0_ x 9.6_ Features Features ASRock Super Alloy Premium 50A Power Choke Sapphire Black PCB High Density Glass Fabric PCB ASRock Intel 4-Layer Memory POOL (Planes on Outer Layers) Technology ASRock Steel Slot ASRock Full Coverage M.2 Heatsink ASRock Hyper M.2 (PCIe Gen4x4) ASRock POST Status Checker (PSC) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop Packaging Package Contents Quick Installation Guide, Support CD, I/O Shield 2 x SATA Data Cables 4 x Screws for M.2 Sockets 1 x Standoff for M.2 Socket
