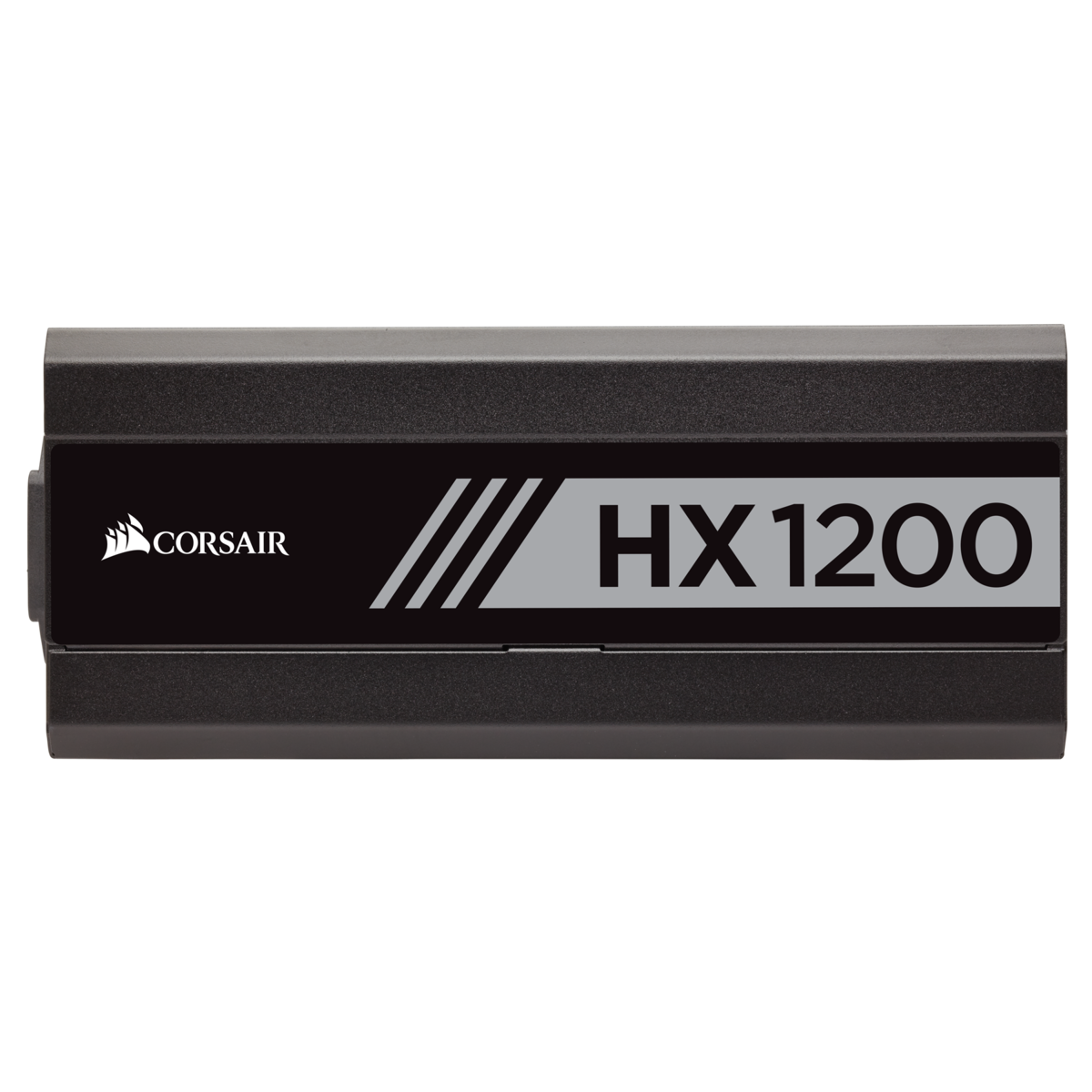

Best CORSAIR HX1200 CP 9020140 IN 1200W 80 PLUS PLATINUM Full Modular PSU

CORSAIR HX1200 CP-9020140-IN 1200W 80 PLUS PLATINUM Full Modular PSU Model Brand CORSAIR Model CP-9020140-IN Series HX1200 Details Type ATX12V v2.4 / EPS12V 2.92 Maximum Power 1200W Fans 1 x 135mm fluid dynamic bearing fan Main Connector 24Pin 12V Rails Single 12V Rail or Multi 12V Rail Mode PCI-Express Connector 8 x 6 2-Pin SATA Power Connector 8 Haswell Support Yes Modular Full Modular Energy-Efficient 80 PLUS PLATINUM Certified Over Voltage Protection Yes Input Voltage 100 ?’ 240 V Input Frequency Range 47 ?’ 63 Hz Input Current 15 ?’ 7.5 A Output Single 12V Rail Mode: 3.3V@30A, 5V@30A, 12V@100A, -12V@0.8A, 5VSB@3.5AMultiple 12V Rail Mode: 3.3V@30A, 5V@30A, 12V1@40A, 12V2@40A, 12V3@40A, 12V4@40A, 12V5@40A, 12V6@40A, 12V7@40A, 12V8@40A, -12V@0.8A, 5VSB@3A Approvals FCC, ICES, CE, UL, cUL, RCM, TUV, CB, CCC, BSMI, EAC, RoHS, WEEE, KC Dimensions 3.39_ x 5.91_ x 7.87_ Weight 5.07 lbs. Features Connectors 1 x 24-pin ATX Cable 2 x 1 x EPS12V/ATX12V Cable (4 4) 4 x 2 x PCIe Cable (6 2) 5 x 4 x SATA Cable (4 Connectors) 2 x 4 x PATA Cable (4 connectors) Features Active PFC with full range AC input (100-240 VAC) 135mm fluid dynamic bearing fan with Zero RPM mode Engineered to meet maximum power output at a 50 degree C temperature rating. Compatible with the latest ATX12V v2.4 and EPS 2.92 standards and is backward compatible with ATX12V 2.2, 2.31 and older systems. Over-voltage protection, under-voltage protection, short circuit protection, over power protection, and over temperature protection provide maximum safety to your critical system components.
