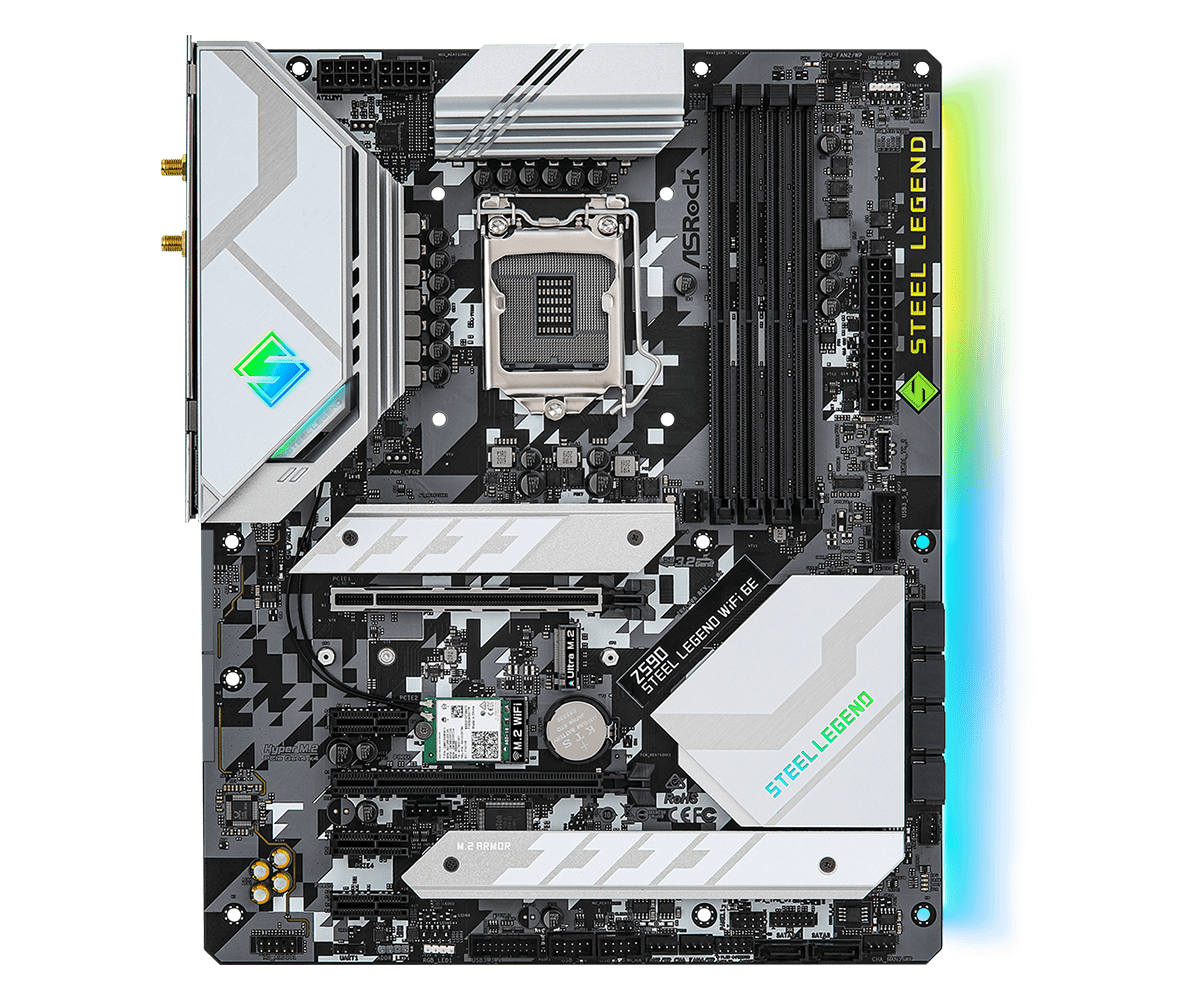

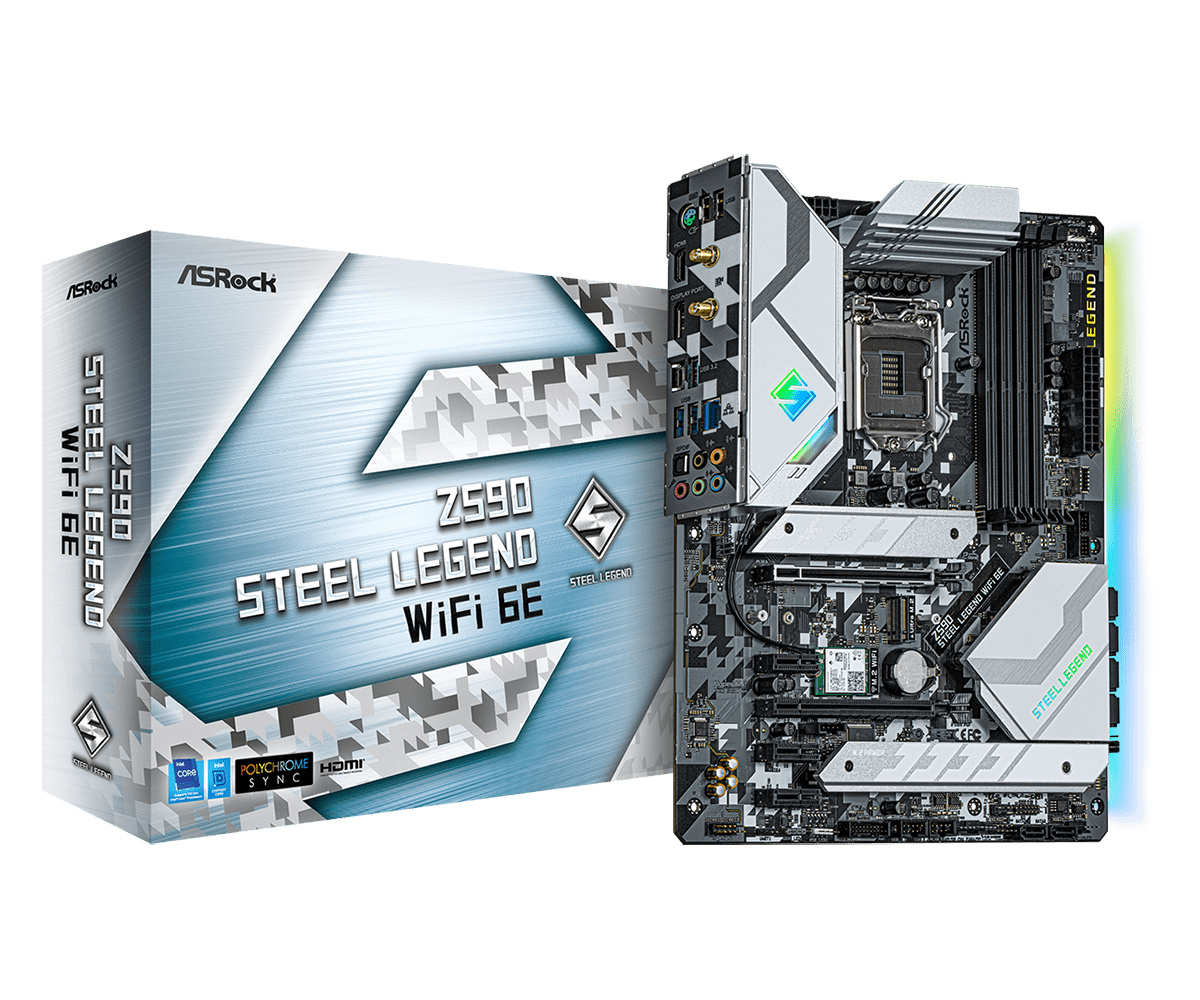

Genuine ASRock Z590 Steel Legend WiFi 6E Socket LGA 1200 ATX Motherboard

Unique Features ASRock USB 3.2 Gen2 ASRock Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s) ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s) ASRock Super Alloy XXL Aluminum Alloy Heatsink Premium Power Choke 50A Dr.MOS Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors) I/O Armor Shaped PCB Design Matte Black PCB High Density Glass Fabric PCB 2oz Copper PCB 2.5G LAN Intel 802.11ax Wi-Fi 6E ASRock Steel Slot ASRock Full Coverage M.2 Heatsink ASRock Hyper M.2 (PCIe Gen4x4) ASRock Ultra USB Power ASRock POST Status Checker (PSC) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop CPU Supports 10th Gen Intel Core Processors and 11th Gen Intel Core Processors (LGA1200) Digi Power design 14 Power Phase design Supports Intel Turbo Boost Max 3.0 Technology Supports Intel K-Series unlocked CPUs Chipset Intel Z590 Memory Dual Channel DDR4 Memory Technology 4 x DDR4 DIMM Slots 11th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 4800+(OC)* 10th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 4666+(OC)** Supports ECC UDIMM memory modules (operate in non-ECC mode) Max. capacity of system memory: 128GB*** Supports Intel Extreme Memory Profile (XMP) 2.0 15 ?«_ Gold Contact in DIMM Slots *11th Gen Intel Core (i9/i7/i5) support DDR4 up to 3200; Core (i3), Pentium and Celeron support DDR4 up to 2666 natively. **10th Gen Intel Core (i9/i7) support DDR4 up to 2933; Core (i5/i3), Pentium and Celeron support DDR4 up to 2666 natively. ***Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation. BIOS 128Mb AMI UEFI Legal BIOS with multilingual GUI support ACPI 6.0 Compliant wake up events SMBIOS 2.7 Support CPU Core/Cache, CPU GT, VCCSA, DRAM, VCCIO, VPPM, VCCIN AUX, VCCST Voltage Multi-adjustment Graphics 11th Gen Intel Core Processors support Intel Xe Graphics Architecture (Gen 12). 10th Gen Intel Core Processors support Gen 9 Graphics Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096 ?Œ ?‘2160) @ 60Hz Supports DisplayPort 1.4 with max. resolution up to 4K x 2K (4096 ?Œ ?‘2304) @ 60Hz Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Port (Compliant HDMI monitor is required) Supports HDCP 2.3 with HDMI 2.0 and DisplayPort 1.4 Ports *Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. 11th Gen Intel Core Processors support HDMI 2.0. 10th Gen Intel Core Processors support HDMI 1.4. Audio 7.1 CH HD Audio (Realtek ALC897 Audio Codec) Supports Surge Protection Gold Audio Jacks 15 ?«_ Gold Audio Connector Nahimic Audio LAN 2.5 Gigabit LAN 10/100/1000/2500 Mb/s Dragon RTL8125BG Supports Dragon 2.5G LAN Software Smart Auto Adjust Bandwidth Control Visual User Friendly UI Visual Network Usage Statistics Optimized Default Setting for Game, Browser, and Streaming Modes User Customized Priority Control Supports Wake-On-LAN Supports Lightning/ESD Protection Supports Energy Efficient Ethernet 802.3az Supports PXE Wireless LAN Intel 802.11ax Wi-Fi 6E Module Supports IEEE 802.11a/b/g/ax Supports Dual-Band 2 ?Œ ?‘2 160MHz with extended 6GHz band* support 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology Supports Bluetooth 5.2 + High speed class II Supports MU-MIMO *Wi-Fi 6E (6GHz band) is not currently enabled by default due to the different regulation status of each country. It will be activated (for supported countries) through Windows Update and software update once available. The update is expected to be in the middle of 2021. Slots 11th Gen Intel Core Processors 2 x PCI Express x16 Slots (PCIE1/PCIE3: single at Gen4x16 (PCIE1); dual at Gen4x16 (PCIE1) / Gen3x4 (PCIE3))* 10th Gen Intel Core Processors 2 x PCI Express x16 Slots (PCIE1/PCIE3: single at Gen3x16 (PCIE1); dual at Gen3x16 (PCIE1) / Gen3x4 (PCIE3))* 3 x PCI Express 3.0 x1 Slots Supports AMD Quad CrossFireX and CrossFireX 1 x M.2 Socket (Key E) with the bundled WiFi-802.11ax PCIe WiFi module 15 ?«_ Gold Contact in VGA PCIe Slot (PCIE1) *Supports NVMe SSD as boot disks Storage 6 x SATA3 6.0 Gb/s Connectors* 1 x Hyper M.2 Socket (M2_1), supports M Key type 2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (Socket M2_1 works with 11th Gen Intel Core processors only)** 1 x Ultra M.2 Socket (M2_2), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)** 1 x Ultra M.2 Socket (M2_3), supports M Key type 2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)** *If M2_2 is occupied by a SATA-type M.2 device, SATA3_1 will be disabled. If M2_3 is occupied by a SATA-type M.2 device, SATA3_5 will be disabled. **Supports Intel Optane Technology Supports NVMe SSD as boot disks Supports ASRock U.2 Kit RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices* *RAID function for PCIe mode SSD in M2_1 is only available with Intel SSD installed. Internal Connectors 1 x SPI TPM Header 1 x Power LED and Speaker Header 2 x RGB LED Headers* 2 x Addressable LED Headers** 1 x CPU Fan Connector (4-pin)*** 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) 1 x Front Panel Audio Connector (15 ?«_ Gold Audio Connector) 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card) 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection) 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (Supports ESD Protection) *Support in total up to 12V/3A, 36W LED Strip **Support in total up to 5V/3A, 15W LED Strip ***The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. ****The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. *****The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP, CHA_FAN3/WP, CHA_FAN4/WP and CHA_FAN5/WP can auto detect if 3-pin or 4-pin fan is in use. Rear Panel I/O 2 x Antenna Ports 1 x PS/2 Mouse/Keyboard Port 1 x HDMI Port 1 x DisplayPort 1.4 1 x Optical SPDIF Out Port 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) (Supports ESD Protection) 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) (Supports ESD Protection) 2 x USB 3.2 Gen1 Ports (Supports ESD Protection)* 2 x USB 2.0 Ports (Supports ESD Protection) 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks) *Ultra USB Power is supported on USB3_12 ports. ACPI wake-up function is not supported on USB3_12 ports. Software and UEFI Software ASRock Motherboard Utility (A-Tuning) ASRock Dragon 2.5G LAN Software ASRock Polychrome SYNC* UEFI ASRock EZ Mode ASRock Full HD UEFI ASRock My Favorites in UEFI ASRock Instant Flash ASRock Internet Flash ASRock Easy RAID Installer *These utilities can be downloaded from ASRock Live Update & APP Shop. Support CD Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar Accessories Quick Installation Guide, Support CD 2 x SATA Data Cables 2 x ASRock WiFi 2.4/5/6 GHz Antennas 3 x Screws for M.2 Sockets 2 x Standoffs for M.2 Sockets 1 x Graphics Card Holder Hardware Monitor Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans Voltage monitoring: CPU Vcore, PCH, DRAM, VCCIO, VPPM, VCCSA, CPU PLL, +12V, +5V, +3.3V Form Factor ATX Warranty 3 Years
