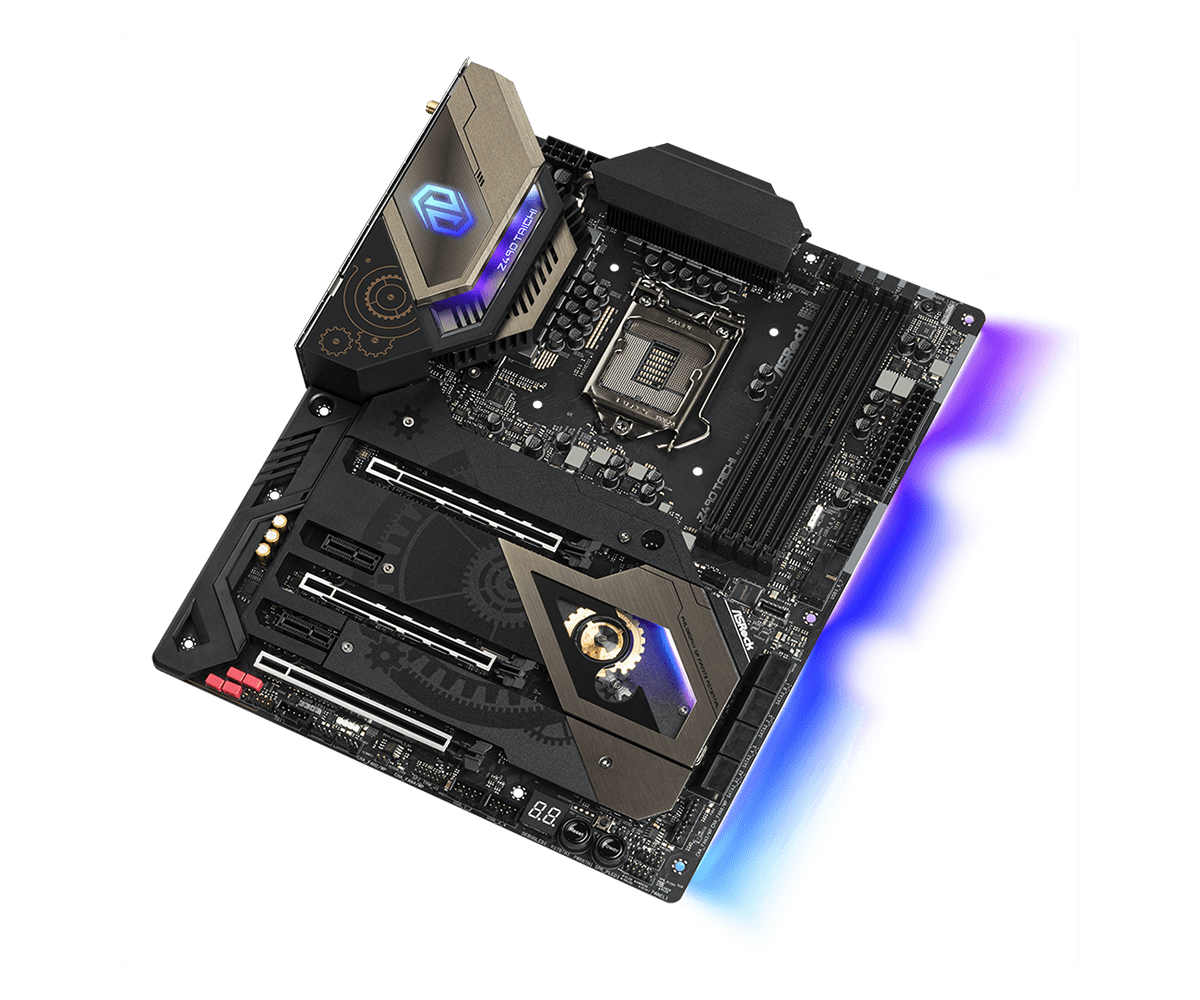

New Model Asrock Z490 TAICHI Intel Z490 ATX Motherboard

Supports 10th Gen and future generation Intel Core Processors (Socket 1200) 15 Phase Dr.MOS Power Design Supports DDR4 4666MHz+ (OC) 3 PCIe 3.0 x16, 2 PCIe 3.0 x1 Supports NVIDIA SLI , AMD 3-Way CrossFireX Graphics Output Options: HDMI, DisplayPort 7.1 CH HD Audio (Realtek ALC1220 Audio Codec), Nahimic Audio 8 SATA3, 2 Ultra M.2 (PCIe Gen3 x4 & SATA3), 1 Ultra M.2 (PCIe Gen3 x4) 1 USB 3.2 Gen2x2 20Gb/s Rear Type-C 3 USB 3.2 Gen2 10Gb/s (2 Rear Type-A, 1 Front Type-C) 9 USB 3.2 Gen1 (4 Front, 5 Rear) Dragon 2.5 Gigabit LAN, Intel Gigabit LAN Intel Wi-Fi 6 802.11ax (2.4Gbps) + BT 5.1 ASRock Polychrome SYNC Specification : Unique Feature ASRock USB 3.2 Gen2 ASRock Front Panel Type-C USB 3.2 Gen2 Header (10 Gb/s) ASRock USB 3.2 Gen2x2 Type-C Port (20 Gb/s) ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s) ASRock Super Alloy XXL Aluminum Alloy Heatsink Premium 60A Power Choke 50A Dr.MOS Premium Memory Alloy Choke (Reduces 70% core loss compared to iron powder choke) Combo Caps (Nichicon 12K Black Caps) Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors) I/O Armor Matte Black PCB High Density Glass Fabric PCB 2oz Copper PCB 2.5G LAN Intel 802.11ax WiFi ASRock Steel Slots ASRock Full Coverage M.2 Heatsink ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3) ASRock Ultra USB Power ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop CPU Supports 10th Gen and future generation Intel Core Processors (Socket 1200) Digi Power design 15 Power Phase design Supports Intel Turbo Boost Max 3.0 Technology Supports Intel K-Series unlocked CPUs Supports ASRock BCLK Full-range Overclocking Supports ASRock Hyper BCLK Engine III Chipset Intel Z490 Memory Dual Channel DDR4 Memory Technology 4 x DDR4 DIMM Slots Supports DDR4 4666+(OC)* / 4600 / 4500 / 4400 / 4333/4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3200(OC) / 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory Supports ECC UDIMM memory modules (operate in non-ECC mode) Max. capacity of system memory: 128GB** Supports Intel Extreme Memory Profile (XMP) 2.0 15 ?«_ Gold Contact in DIMM Slots **Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation. BIOS 128Mb AMI UEFI Legal BIOS with multilingual GUI support ACPI 6.0 Compliant wake up events SMBIOS 2.7 Support CPU Core/Cache, CPU GT, DRAM, VPPM, VCCSFR, VCCPLL, VCCSTG, VCCSTG_OUT, PCH Voltage, VCCIO, VCCST, VCCSA, CPU Internal PLL, GT PLL, Ring PLL, System Agent PLL, Memory Controller PLL Voltage Multi-adjustment Graphics Hardware Accelerated Codecs: AVC/H.264, HEVC/H.265 8bit, HEVC/H.265 10bit, VP8, VP9 8bit, VP9 10bit, MPEG 2, MJPEG, VC-1** Graphics, Media & Compute: Microsoft DirectX 12, OpenGL 4.5, Intel Built In Visuals, Intel Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1 Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft PlayReady 3.0, Intel SGX Content Protection, UHD/HDR Blu-ray Disc Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096 ?Œ ?‘2160) @ 30Hz Supports DisplayPort 1.4 with max. resolution up to 4K x 2K (4096 ?Œ ?‘2304) @ 60Hz Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required) Supports HDCP 2.3 with HDMI 1.4 and DisplayPort 1.4 Ports Supports 4K Ultra HD (UHD) playback with HDMI 1.4 and DisplayPort 1.4 Ports *Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. ** VP9 10bit and VC-1 are for decode only. VP8 and VP9 encode are not supported by Windows OS. Audio 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec) Premium Blu-ray Audio support Supports Surge Protection WIMA Audio Capacitors (For Front Outputs) ESS SABRE9218 DAC for Front Panel Audio (130dB SNR) Pure Power-In Direct Drive Technology PCB Isolate Shielding Impedance Sensing on Rear Out port Individual PCB Layers for R/L Audio Channel Gold Audio Jacks 15 ?«_ Gold Audio Connector Nahimic Audio LAN 1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125BG) Supports Dragon 2.5G LAN Software Smart Auto Adjust Bandwidth Control Visual User Friendly UI Visual Network Usage Statistics Optimized Default Setting for Game, Browser, and Streaming Modes User Customized Priority Control Supports Wake-On-LAN Supports Lightning/ESD Protection Supports Energy Efficient Ethernet 802.3az Supports PXE 1 x Gigabit LAN 10/100/1000 Mb/s (Intel I219V) Supports Wake-On-LAN Supports Lightning/ESD Protection Supports Energy Efficient Ethernet 802.3az Supports PXE Wireless LAN Intel 802.11ax WiFi Module Supports IEEE 802.11a/b/g/ax Supports Dual-Band (2.4/5 GHz) Supports WiFi6 802.11ax (2.4Gbps) 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology Supports Bluetooth 5.1 + High speed class II Supports MU-MIMO Slots 3 x PCI Express 3.0 x16 Slots (PCIE1/PCIE3/PCIE5: single at x16 (PCIE1); dual at x8 (PCIE1) / x8 (PCIE3); triple at x8 (PCIE1) / x8 (PCIE3) / x4 (PCIE5))* 2 x PCI Express 3.0 x1 Slots Supports AMD Quad CrossFireX , 3-Way CrossFireX and CrossFireX Supports NVIDIA and SLI Support NVIDIA SLI with NVIDIA Quadro graphics cards Supports NVIDIA NVLink with dual NVIDIA GeForce RTX series graphics cards** 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ax module (on the rear I/O) 15 ?«_ Gold Contact in VGA PCIe Slot (PCIE1) *Supports NVMe SSD as boot disks **NVIDIA NVLink Bridge does not come with the package. Please purchase it from NVIDIA if necessary. Storage 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 17), NCQ, AHCI and Hot Plug* 2 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug 1 x Ultra M.2 Socket (M2_1), supports M Key type 2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s)** 1 x Ultra M.2 Socket (M2_2), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)** 1 x Ultra M.2 Socket (M2_3), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)** *M2_2, SATA3_0 and SATA3_1 share lanes. If either one of them is in use, the others will be disabled. M2_3, SATA3_4 and SATA3_5 share lanes. If either one of them is in use, the others will be disabled. M2_3, SATA3_4, SATA3_5 and USB32_TC_1 share lanes. If either one of them is in use, USB32_TC_1 will downgrade to 16 Gb/s max. M2_3 and USB32_TC_1 share lanes. If either one of them is in use, M2_3 and USB32_TC_1 will downgrade to PCIe Gen3 x2 (16 Gb/s). **Supports Intel Optane Technology (M2_1 and M2_2 only) Supports NVMe SSD as boot disks Supports ASRock U.2 Kit Connector 1 x SPI TPM Header 1 x Power LED and Speaker Header 2 x RGB LED Headers* 2 x Addressable LED Headers** 1 x CPU Fan Connector (4-pin)*** 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) 6 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)**** 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) 1 x Front Panel Audio Connector (15 ?«_ Gold Audio Connector) 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 3 AIC R2.0 Card only) 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Intel Z490) (Supports ESD Protection) 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection) 1 x Front Panel Type C USB 3.2 Gen2 Header (Intel Z490) (Supports ESD Protection) 1 x Clear CMOS Button 1 x Dr. Debug with LED 1 x Power Button with LED 1 x Reset Button with LED *Support in total up to 12V/3A, 36W LED Strip **Support in total up to 5V/3A, 15W LED Strip ***The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. ****The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. CPU_FAN2/WP_3A, CHA_FAN1/WP, CHA_FAN2/WP, CHA_FAN3/WP, CHA_FAN4/WP, CHA_FAN5/WP and CHA_FAN6/WP can auto detect if 3-pin or 4-pin fan is in use. CPU_FAN2/WP_3A supports the water cooler fan of maximum 3A (36W) fan power. Rear Panel I/O 2 x Antenna Ports 1 x PS/2 Mouse/Keyboard Port 1 x HDMI Port 1 x DisplayPort 1.4 1 x Optical SPDIF Out Port 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (ReDriver) (Supports ESD Protection) 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s) (ASMedia ASM3242) (Supports ESD Protection)* 5 x USB 3.2 Gen1 Ports (Supports ESD Protection)** 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED) 1 x BIOS Flashback Button HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks) *M2_3, SATA3_4, SATA3_5 and USB32_TC_1 share lanes. If either one of them is in use, USB32_TC_1 will downgrade to 16 Gb/s max. **USB3_3 is from Intel Z490; USB3_12 and USB3_4_5 are from ASMedia ASM1074 hub. Ultra USB Power is supported on USB3_4_5 ports. ACPI wake-up function is not supported on USB3_4_5 ports. Software and UEFI Software ASRock Motherboard Utility (A-Tuning) ASRock Dragon 2.5G LAN Software ASRock Polychrome SYNC* UEFI ASRock EZ Mode ASRock Full HD UEFI ASRock My Favorites in UEFI ASRock Instant Flash ASRock Internet Flash ASRock Easy RAID Installer Support CD Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar Accessories Quick Installation Guide, Support CD 4 x SATA Data Cables 1 x ASRock SLI_HB_Bridge_2S Card 1 x ASRock WiFi 2.4/5 GHz Antenna 1 x ASRock Screwdriver 3 x Screws for M.2 Sockets 2 x Standoffs for M.2 Sockets Hardware Monitor Temperature Sensing: CPU, CPU/Water Pump, Chassis/Water Pump Fans Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, VPPM, PCH, VCCSA, VCCST, VCCIO, VCCFSR_OC, VCCSFR Form Factor ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm 2oz Copper PCB OS Microsoft Windows 10 64-bit Certifications FCC, CE ErP/EuP ready (ErP/EuP ready power supply is required) Warranty 3 Years
