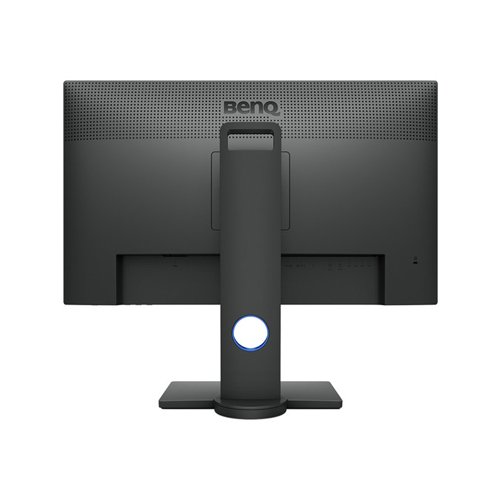

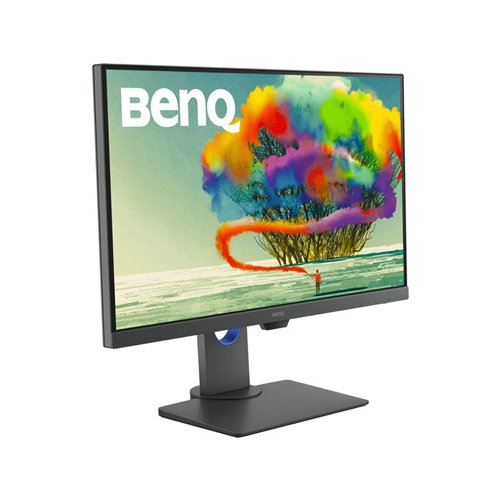

New Model BenQ PD2700U DesignVue Designer 27 inch 16:9 IPS Monitor PD2700U

The PD2700U DesignVue Designer 27 16:9 IPS Monitor from BenQ delivers clarity and color precision, with support for 100% of the sRGB and Rec. 709 color gamuts, as well as HDR10, to help designers fulfill their ideas. Driven by BenQs AQCOLOR technology and a UHD 4K resolution of 3840 x 2160 with a 60 Hz refresh rate, the PD2700U is coupled with three special modes CAD/CAM, Animation, and Darkroom each of which being tailored for different scenarios, allowing users in different fields to achieve similar results. The PD2700U features In-Plane Switching (IPS) technology, an anti-glare panel coating, 10-bit support for 1.07 billion colors, a widescreen 16:9 aspect ratio, a static contrast ratio of 1300:1, a dynamic contrast ratio of 20M:1, a 350 cd/m2 brightness rating, 163 ppi, and a 5 ms (GtG) response time. Using the 178 ?„ horizontal and vertical viewing angles, it is possible to watch content from virtually any position. There is also one HDMI 2.0 input, one DisplayPort 1.2, one Mini DisplayPort 1.2 input, and one DisplayPort output for daisy-chaining multiple displays together using MST (multi-stream transport) technology, plus four USB 3.0 Type-A and two USB 3.0 Type-B ports. Audio can be output using the dual integrated 2W speakers or the 3.5mm headphone jack. BenQs PD2700U also supports HDCP 2.2, Picture-in-Picture, Picture-by-Picture, Flicker-Free technology, Low Blue Light technology, Brightness Intelligence technology and more. To further help improve viewing and accessibility, the PD2700U features a vertical tilt of -5 to 20 ?„, a left/right swivel of ?…45 ?„, a clockwise/counterclockwise pivot of 90 ?„, and a height adjustment of 5.51. It is certified for Mac, Windows 10, 8.1, 8, and 7, and SolidWorks. Color Accuracy and Resolution UHD 4K Resolution UHD 4K (3840 x 2160) resolution offers a great amount of clarity for fine details and depth of subtle textures optimized for visually intensive work in animation, visual effects, graphics, and photos. AQCOLOR True Colors Right Before You Devoted to meet the latest professional color standard, BenQ has developed AQCOLOR technology to uphold the concept of Accurate Reproduction. BenQ has invited a color expert to lead the team, and also joined ICC (International Color Consortium) and ISO (International Standard Organization) to establish color-related standards and implementation. Reference-Grade Color Performance with 10-Bit, 100% sRGB and Rec. 709 Covering 100% of sRGB and Rec. 709 color spaces, the PD2700Us advanced IPS wide viewing angle technology minimizes color shift to inspire greater design confidence. 100% sRGB color gamut accuracy adheres to industry standards in digital production, and Rec. 709 reproduces accurate resolution, frame rate, color gamut, gamma, and white point performance in high-definition video work. Professionally Factory-Calibrated for Color Accuracy Each BenQ Designer Monitor is individually factory-calibrated upon production to assure precise Delta-E and Gamma performance. Calibration results are validated against industry color standards to deliver the truest and most representative view of original content. Calibration eliminates slight color performance variations between individual panels of the same model. Therefore, the calibration data of each report will vary slightly from reports from other displays of the same model. HDR10 (ST2084) Support BenQs DesignVue PD2700U is equipped with HDR10 technology to let designers preview video contents HDR effect during the editing process, helping to ensure desirable outcomes for their final works. Simple, Functional Design for Increased Efficiency CAD/CAM Mode Offering greater contrast for lines and shapes in technical illustrations, CAD/CAM mode accentuates fine details to produce increased display performance in Pro/E, SolidWorks, AutoCAD, CATIA, or other design software. Animation Mode Often problematic for designers working with intricate details in dark images, Animation Mode enhances the brightness of dark areas without overexposing bright regions. Animation mode provides 10 levels of display brightness to clearly bring out subtleties in ambient lighting. Darkroom Mode Adjusting image brightness and contrast for greater clarity and sharp details, Darkroom Mode creates improved settings for work in darkened post-processing environments. Smart Efficiency and Productivity Enhancers Keyboard Video Mouse (KVM) Switch KVM Switch functionality allows users to display and control content from two different PC systems on one screen using just one set of keyboard and mouse to save space and boost work efficiency. A Daisy-Chain Configuration for Greater Productivity The BenQ PD2700U is a daisy-chaining enabled display equipped with multi-stream transport technology (MST), allowing you to extend your notebooks screen across several displays using its DisplayPort output for a multiple monitor setup. You can appreciate the boundless views from PD2700Us edge-to-edge design with minimal bezels on all four sides. DualView Mode Improve your workflow and enhance productivity by switching on DualView to showcase designs in two modes (sRGB and CAD/CAM) side-by-side without the need for two screens. Caring for Your Eyes Eye-Care Technology BenQs eye-care technologies help reduce eye fatigue for user comfort, enhanced productivity, and workplace safety during extended use. Eliminate Eye Strain in Ambient Light Brightness Intelligence Technology (B.I.Tech.) monitors ambient light in your viewing environment and actively adjusts screen brightness for a comfortable viewing experience. Low Blue Light Technology BenQ Low Blue Light Technology is designed to filter out harmful blue light, effectively diminishing eye fatigue and irritation. Flicker-Free Flicker-free helps eliminate flickering at all brightness levels and reduces eye fatigue effectively. Conventional LCD screens flicker at the rate of 250 times per second. Your eyes may not see the flickers but they can certainly feel them. So relieve your eyes from the uncomfortable flickering effect by switching to a BenQ flicker-free monitor. Specification : Display Size 27 Screen Area 23.49 x 13.21 / 596.74 x 335.66 mm Panel Type IPS-Type LCD Touchscreen No Resolution 3840 x 2160 Aspect Ratio 16:09 Pixels Per Inch (ppi) 163 ppi Finish Matte Maximum Brightness 350 cd/m2 Contrast Ratio 1300:01:00 Dynamic Contrast Ratio 20,000,000:1 Refresh Rate 60 Hz Adaptive Sync Technology None Bit Depth / Color Support 10-Bit (1.07 Billion Colors) HDR Compatibility HDR10 Color Gamut 100% sRGB 100% Rec. 709 Response Time 5 ms (GtG) Viewing Angle Horizontal: 178 ?„ (89/89) Vertical: 178 ?„ (89/89) Dot Pitch 0.155 x 0.155 mm Inputs / Outputs Connectivity 1 x HDMI 2.0 Input 1 x DisplayPort 1.2 Input 1 x Mini DisplayPort 1.2 Input 1 x DisplayPort Output 4 x USB Type-A (USB 3.1 Gen 1) Input 2 x USB Type-B (USB 3.1 Gen 1) Output 1 x 3.5 mm Output HDCP Support Yes, Version 2.2 Built-In Speakers Yes, 2 x 2 W Supported Languages Arabic Czech Dutch English French German Hungarian Italian Japanese Korean Polish Portuguese Romanian Russian Simplified Chinese Spanish Swedish Traditional Chinese Power Power Consumption 80 W (Typical) 30 W (Eco) 0.5 W (Standby) AC Input Power 100 to 240 VAC, 50 / 60 Hz Power Adapter Type Internal Environmental Certifications ENERGY STAR, EPEAT GOLD, TCO Certified, as per Manufacturer Physical Height Adjustment 5.51 / 140 mm Rotation Adjustment 90 ?„ Swivel Adjustment 90 ?„ (-45 to 45 ?„) Tilt Adjustment -5 to 20 ?„ Mounting-Hole Pattern 100 x 100 mm Dimensions (W x H x D) 24.2 x 21.6 x 9.1 / 613.8 x 548.3 x 230.7 mm (With Stand) 24.2 x 14.5 x 2.3 / 613.8 x 367.9 x 58.8 mm (Without Stand) Weight 16.98 lb / 7.7 kg (With Stand) 11.02 lb / 5.0 kg (Without Stand) Packaging Info Package Weight 21.3 lb Box Dimensions (LxWxH) 27.0 x 19.0 x 9.0
