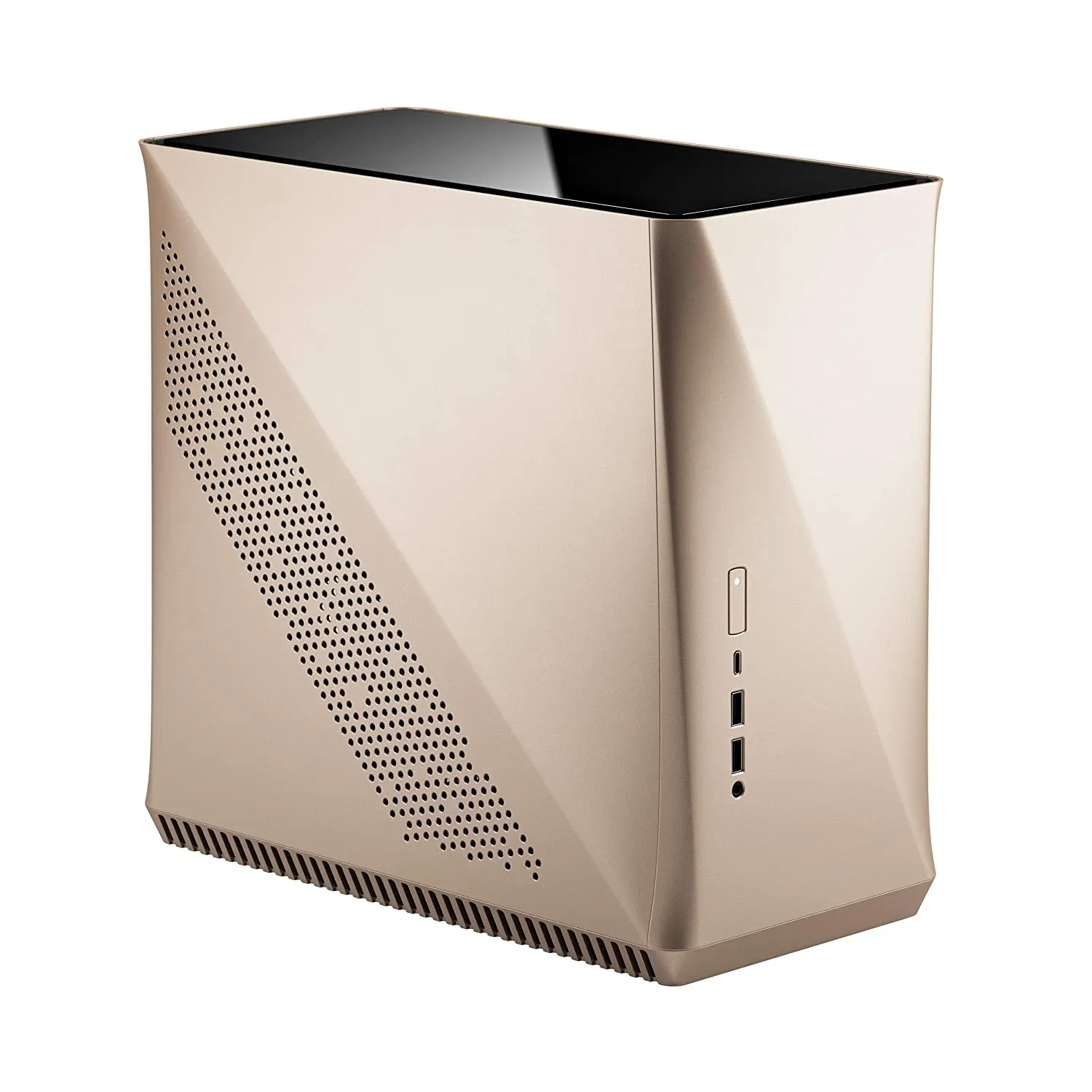

New Model Fractal Design Era ITX Mini Tower Case (Gold with Tempered Glass) FD CA ERA ITX CHP

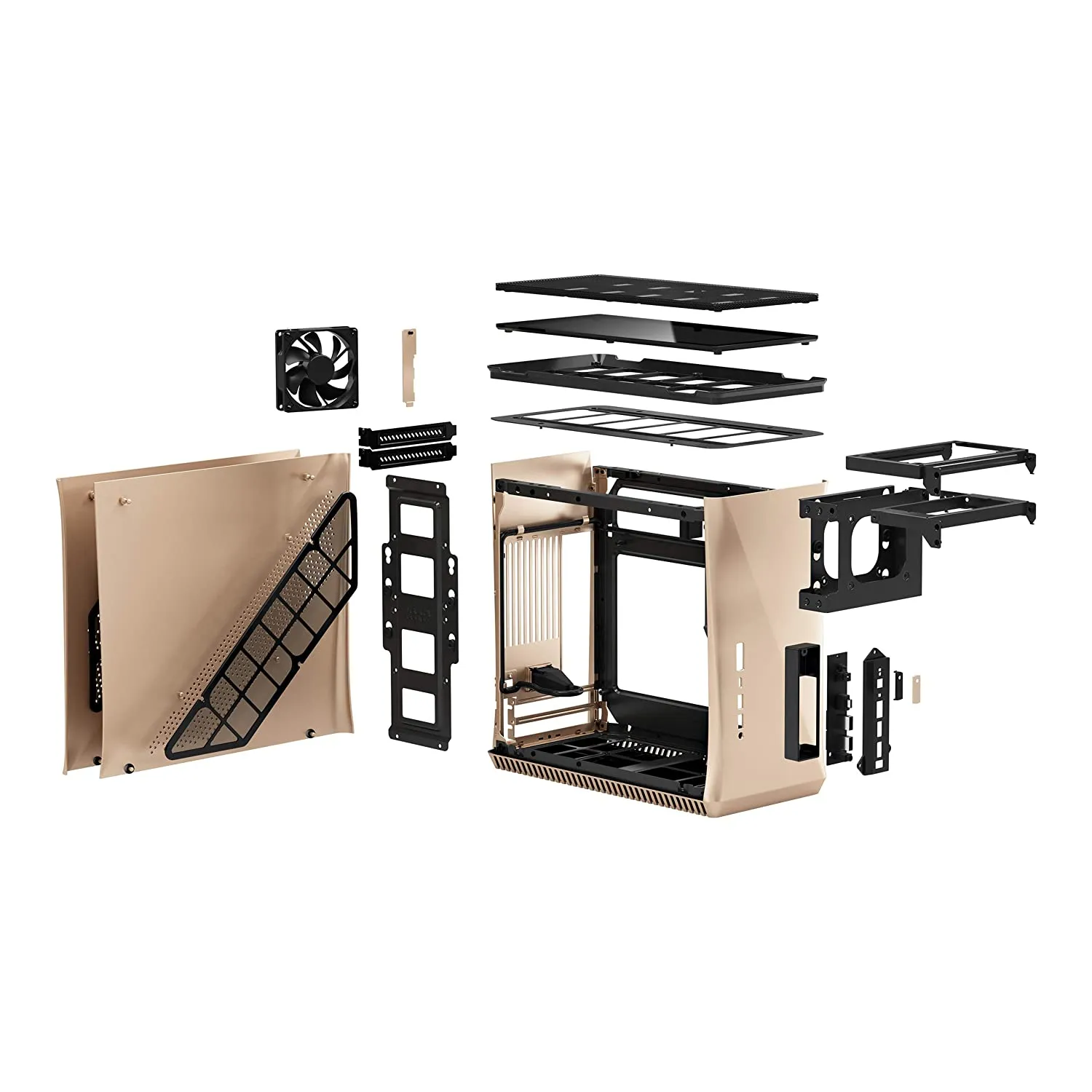

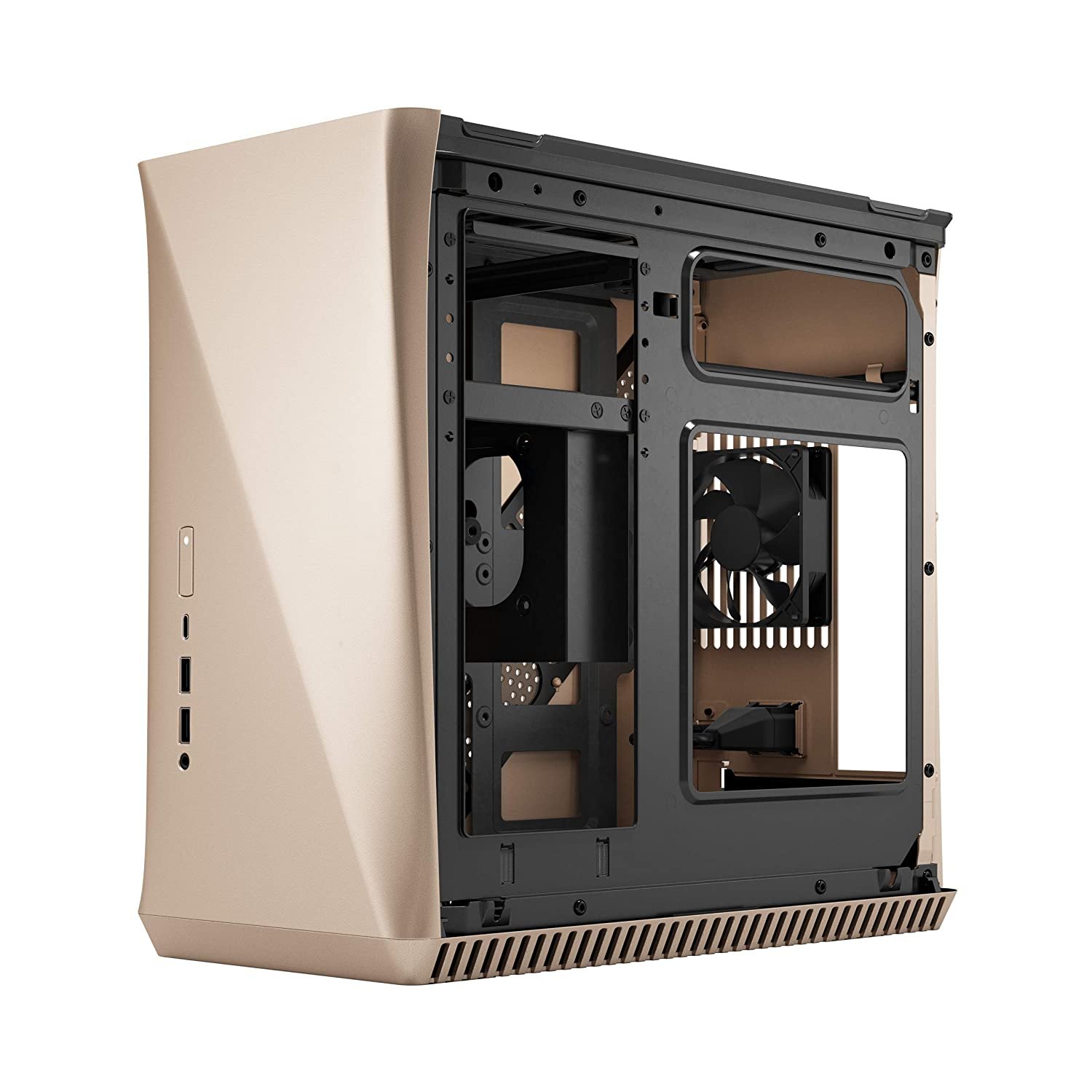

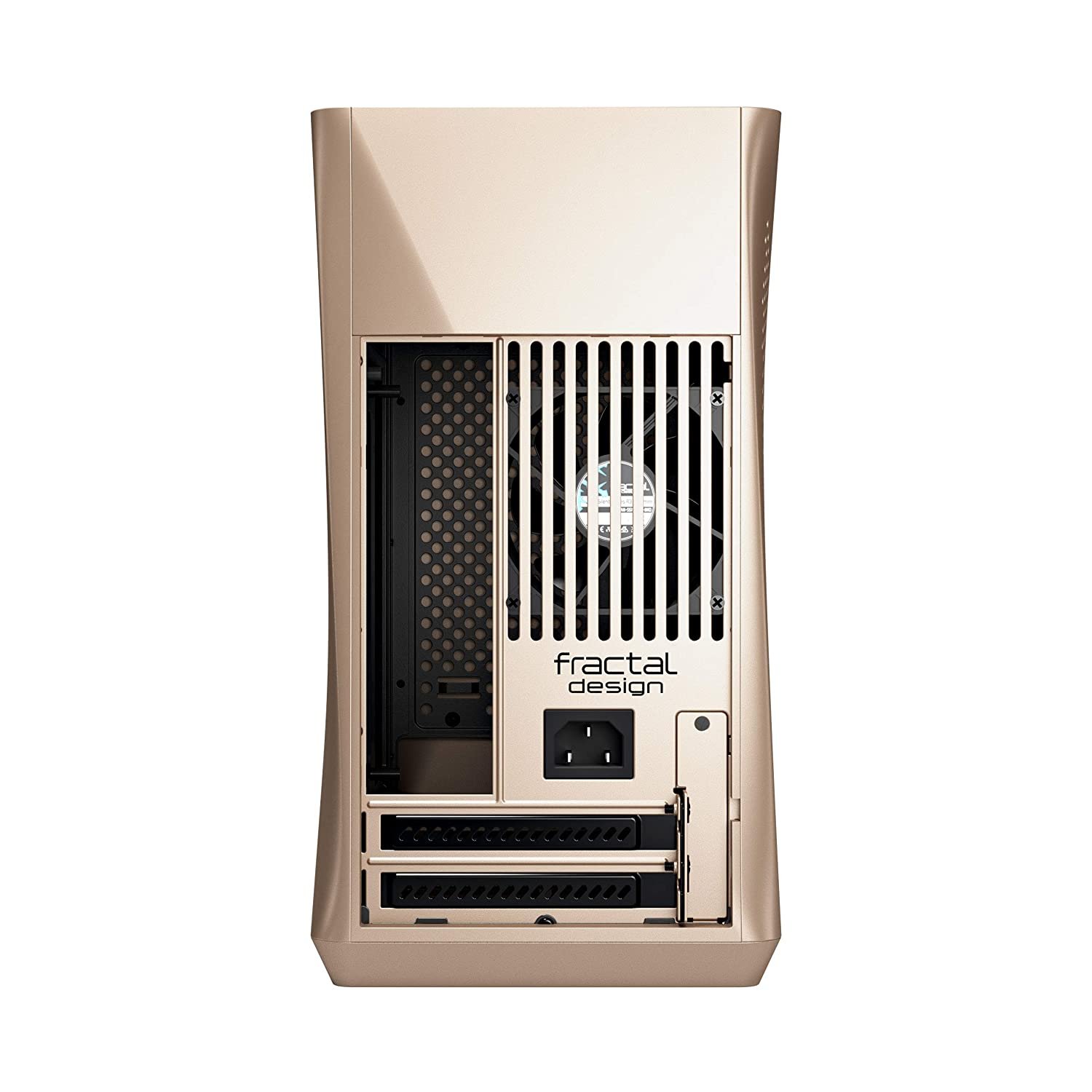

Fit all your components into a compact chassis with the gold Era ITX Mini Tower Case from Fractal Design. Intended to deliver performance in a small package, this case supports Mini-ITX boards with room for either an ATX, SFX-L, or SFX power supply. When using an SFX power supply, one PSU-mounted and one-side mounted bracket can hold a total of either two 3.5 or four 2.5 drives. With an ATX or SFX-L power supply installed, the side drive bracket can be fitted, holding either one 3.5 or two 2.5 drives. Additionally, two expansion slots support a dual-slot GPU up to 11.61. PSUs up to 7.87 are also supported, as are CPU coolers up to 4.72, or 2.75 if installing a side-mounted 3.5 drive. Featuring a steel frame with aluminum panels, the Era ITX also sports a tempered glass top panel. This panel can be swapped out for the included steel mesh top panel for increased airflow. Inside, this case comes with a single preinstalled 80mm exhaust fan, with room for two additional user-installed 120mm fans at the top of the case. If not installing a GPU, users can take advantage of the extra space at the bottom of the case to install an additional two 140mm fans. Supporting liquid cooling, the Era ITX can also accommodate a top radiator up to 240mm. Easy-cleaning nylon dust filters on the top, side, and bottom of the case further assist with keeping internals cool and clean. A front I/O panel sports a single USB 3.1 Gen 2 Type-C port and two USB 3.1 Gen 1 Type-A ports, as well as a 3.5mm combination audio input/output port. Versatile interior supporting professional grade hardware Stylish top panel designed to match the color of your case Additional steel mesh top panel included for higher airflow Small, flexible, and space efficient with volume just over 16 liters Supports dual slot graphics cards up to 295mm in length Water cooling support via removable radiator bracket allowing 240mm or dual 120mm radiators Two storage brackets, each capable of mounting a single 3.5 HDD or two 2.5 SSDs Efficient chimney design optimizes airflow across five total fan positions Pre-installed 80mm Fractal Design SSR3 fan exhausts heat silently and effectively Install SFX, SFX-L, or ATX PSUs up to 200mm in length with innovative adjustable brackets that maximize flexibility Magnetic top panel and toolless latching side panels allow easy access Easy-to-clean, high airflow nylon filters on the top, sides, and base USB 3.1 Gen 2 Type-C with support for fast charging and speeds up to 10 Gbps Specification : Compatibility Motherboard Support Mini-ITX External Drive Bays None Internal Drive Bays 2 x 2.5/3.5 Expansion Slots 2 x Full Height Maximum GPU Length 11.61 / 295 mm CPU Cooler Height 4.72 / 120 mm Supported PSU Size ATX Maximum PSU Length 7874.02 mil / 200 mm Cooling Fan Mounting (Front) None Fan Mounting (Rear) 1 x 80 mm Fan Mounting (Top) 2 x 120 mm Fan Mounting (Bottom) 2 x 140 mm Fans Included (Rear) 1 x 80 mm (1600 rpm) Fans Included (Side) None Fans Included (Top) None Fans Included (Bottom) None Maximum Radiator Size (Top) 240 mm Fan Mounting (Internal) None Fans Included (Internal) None Noise Level 18.1 dBA Filter Locations Bottom, Side, Top I/O Connections 1 x USB Type-C (USB 3.1 / USB 3.2 Gen 2) 2 x USB Type-A (USB 3.1 / USB 3.2 Gen 1) Audio Connections 1 x 3.5 mm Input/Output Display Connections None Physical Windowed Panel Yes Material Aluminum, Tempered Glass Built-In Lighting No Dimensions (W x H x D) 6.54 x 12.2 x 12.8 / 166 x 310 x 325 mm Weight 10.87 lb / 4.93 kg Warranty Length Limited 2-Year Warranty
